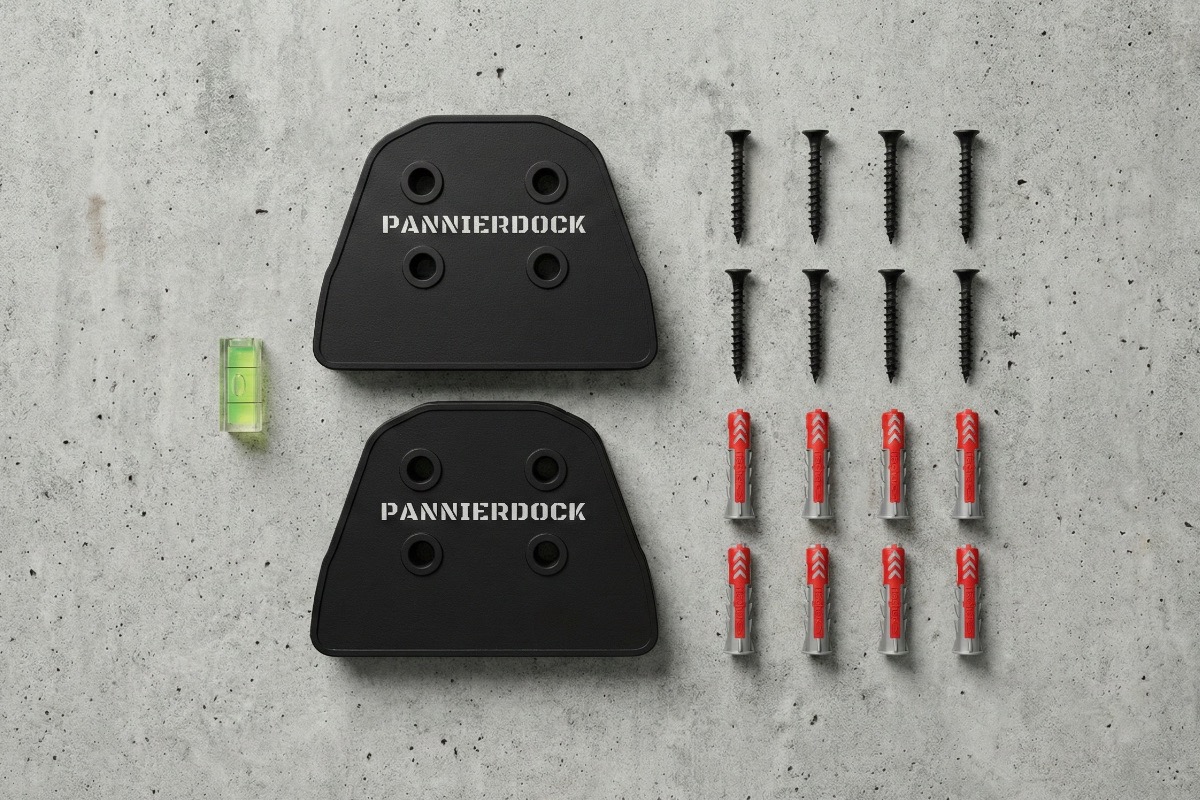

In The Box
- 2x PANNIERDOCKs
- 8x Universal Wall Plugs (6mm)
- 8x Black Steel Screws
- 1x Mini Spirit Level
What You Need
- ✓ Power Drill
- ✓ 6mm Drill Bit (Masonry/Wood)
- ✓ Pencil or Marker
- ✓ Tape Measure
- ✓ Hammer (Optional)

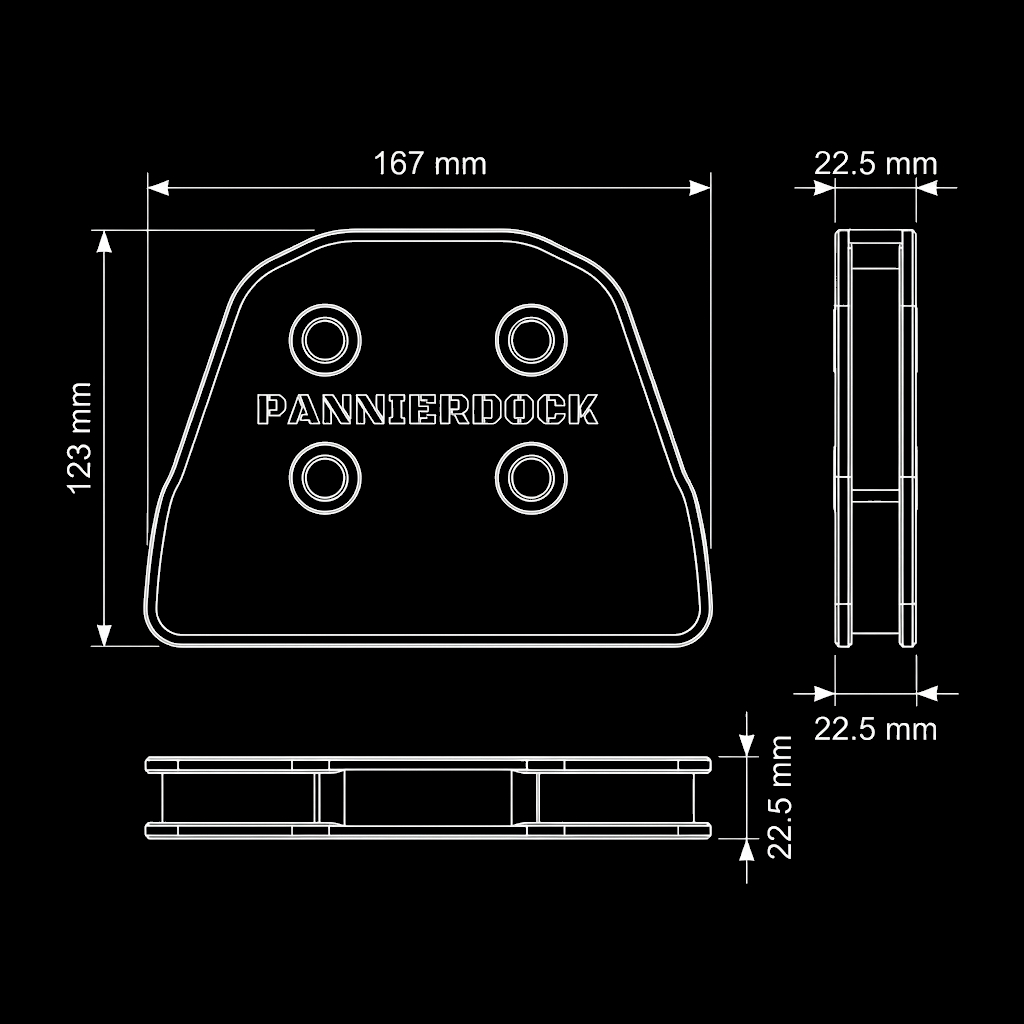

Technical Specs
Designed with tight tolerances to ensure your panniers don't wobble. The mount geometry mimics the bike frame for a seamless fit.
1. Planning Your Layout

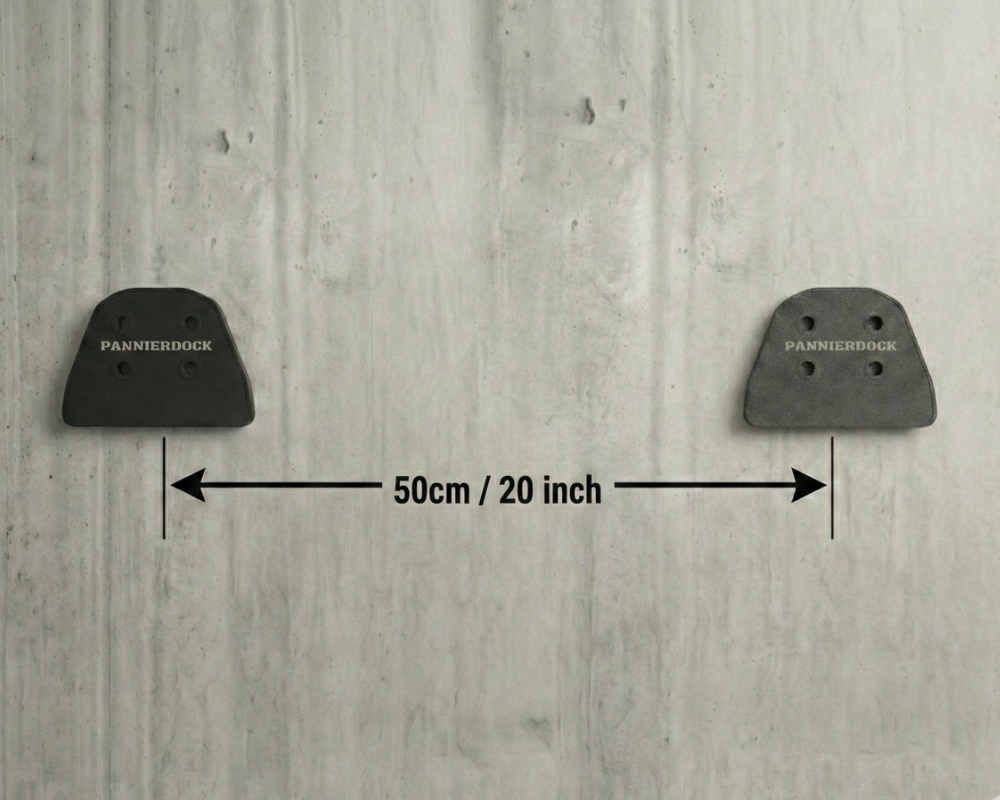

Spacing & Height
Since the bags hang independently, you can install them anywhere. However, for a clean look:
- Horizontal Spacing: We recommend a minimum of 50cm (20") center-to-center to ensure fully loaded bags don't rub.
- Vertical Height: Chest height is ideal for ergonomic lifting.
- Staggered: You can mount them vertically offset if you have narrow wall space.
2. Installation Steps

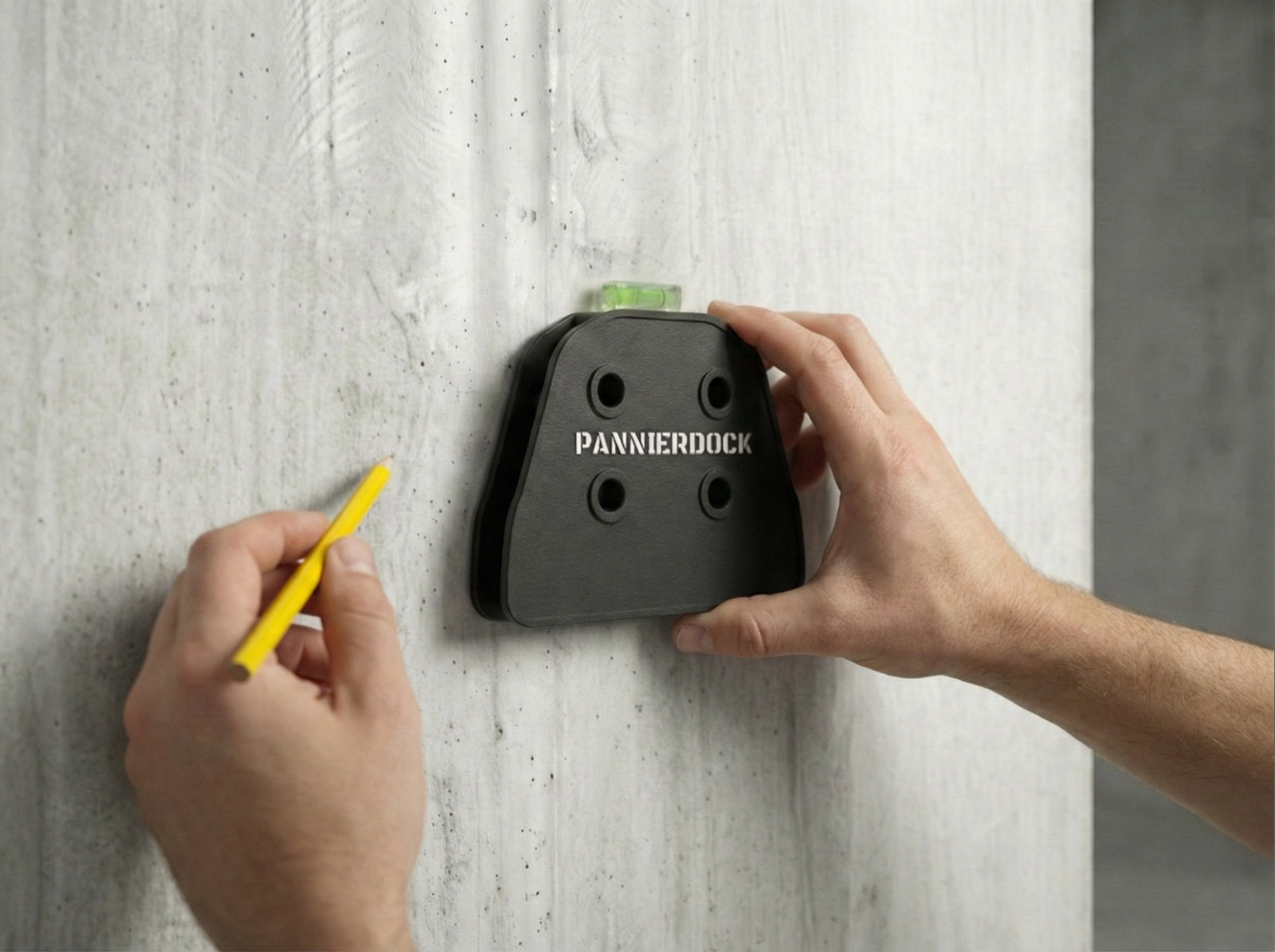

Position & Level
Place the dock on the wall. Place the included mini spirit level on the top flat edge of the dock. Adjust until the bubble is perfectly centered.
Once level, use your pencil to mark the 4 hole positions through the dock onto the wall.

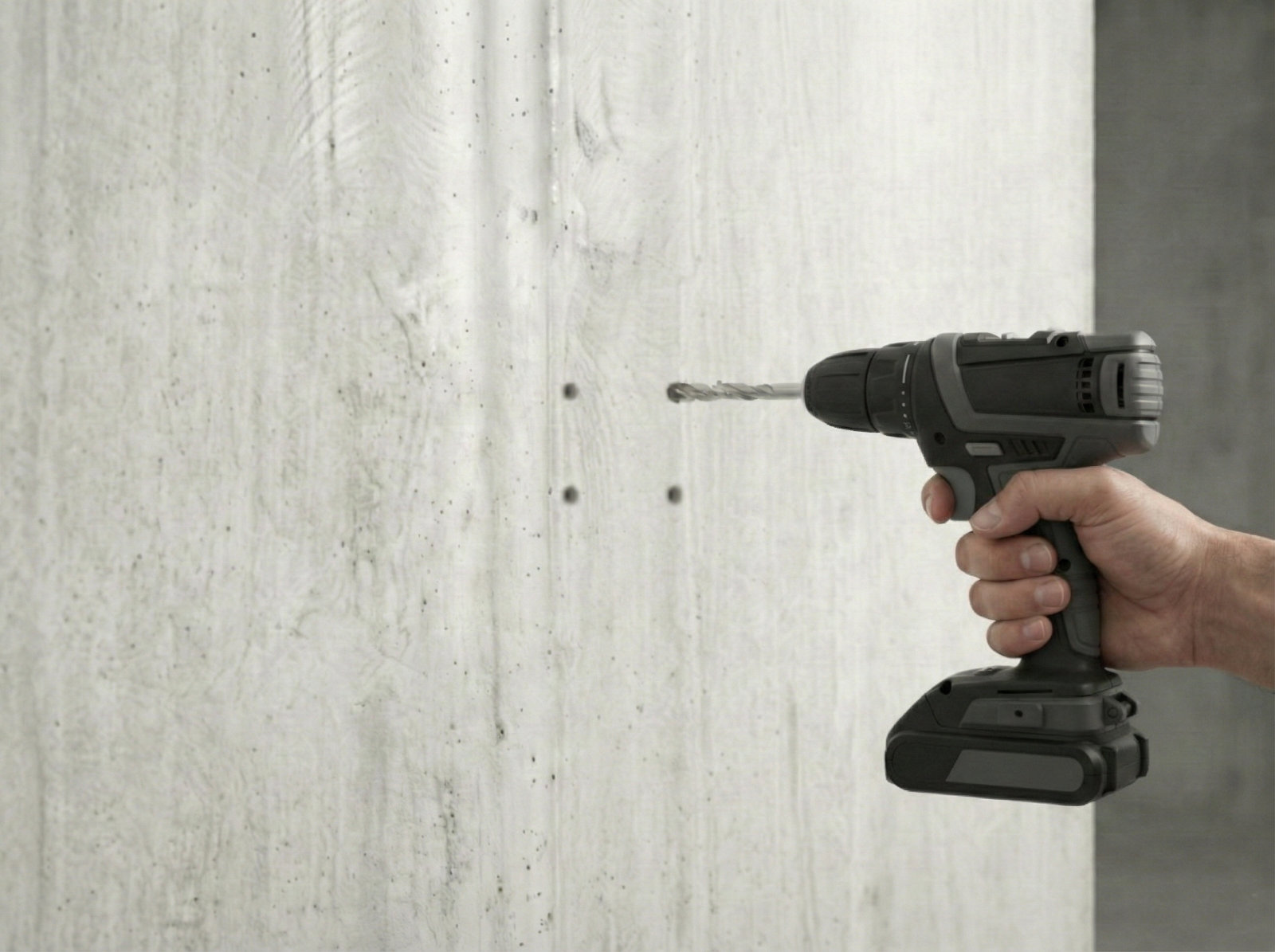

Drill Holes
Remove the dock. Using a 6mm drill bit, drill into your marks.
Tip: If drilling into masonry/brick, use hammer mode. If drilling into wood studs, use a smaller 3mm pilot bit and skip the plugs.

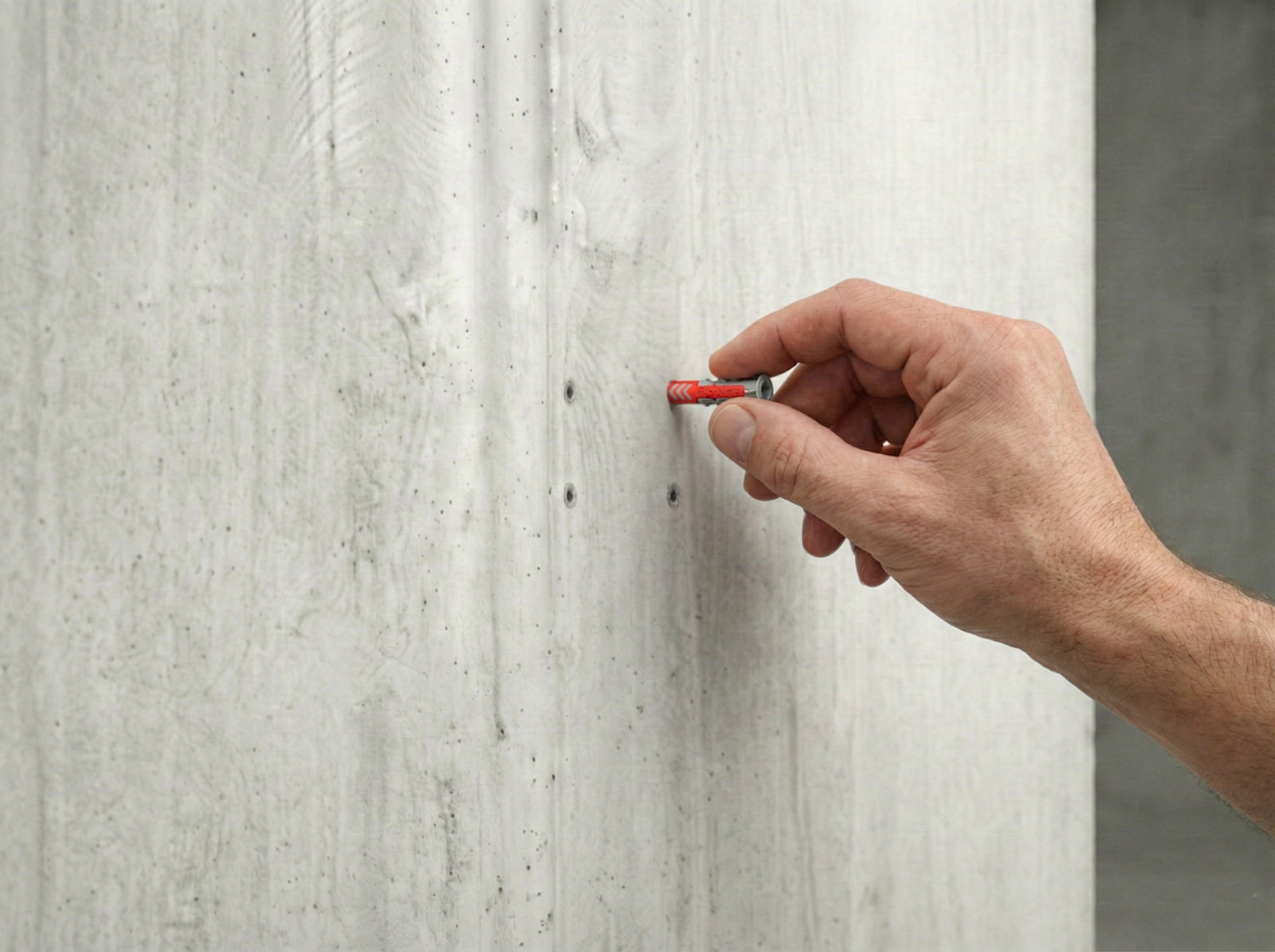

Insert Plugs
Push the provided wall plugs into the holes. They should fit snugly. If necessary, tap them gently with a hammer until they are flush with the wall surface.

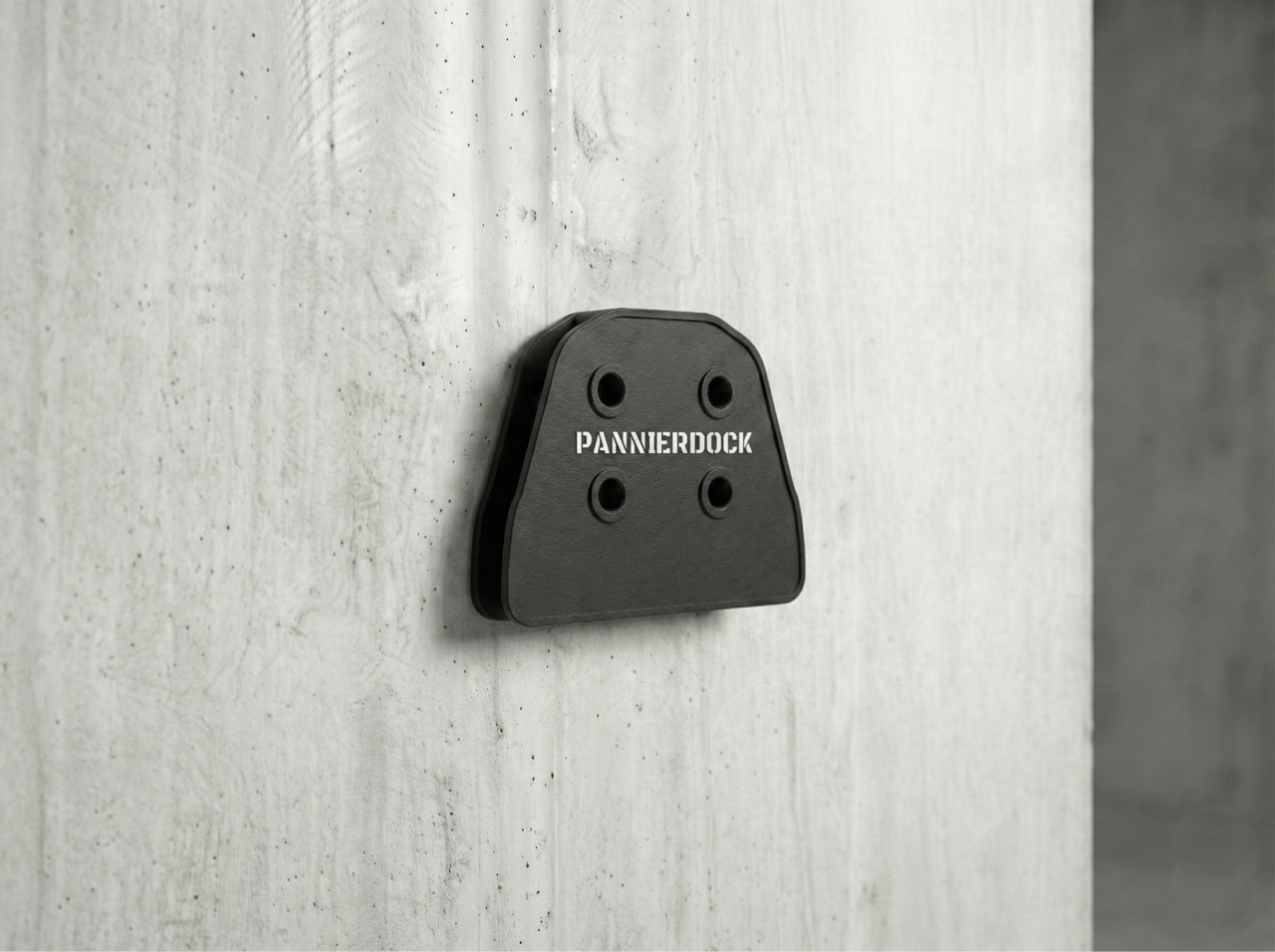

Mount the Dock
Align the dock over the plugs. Insert the black screws and tighten them using a screwdriver or drill (low torque setting). Ensure the mount is firm and does not wiggle.

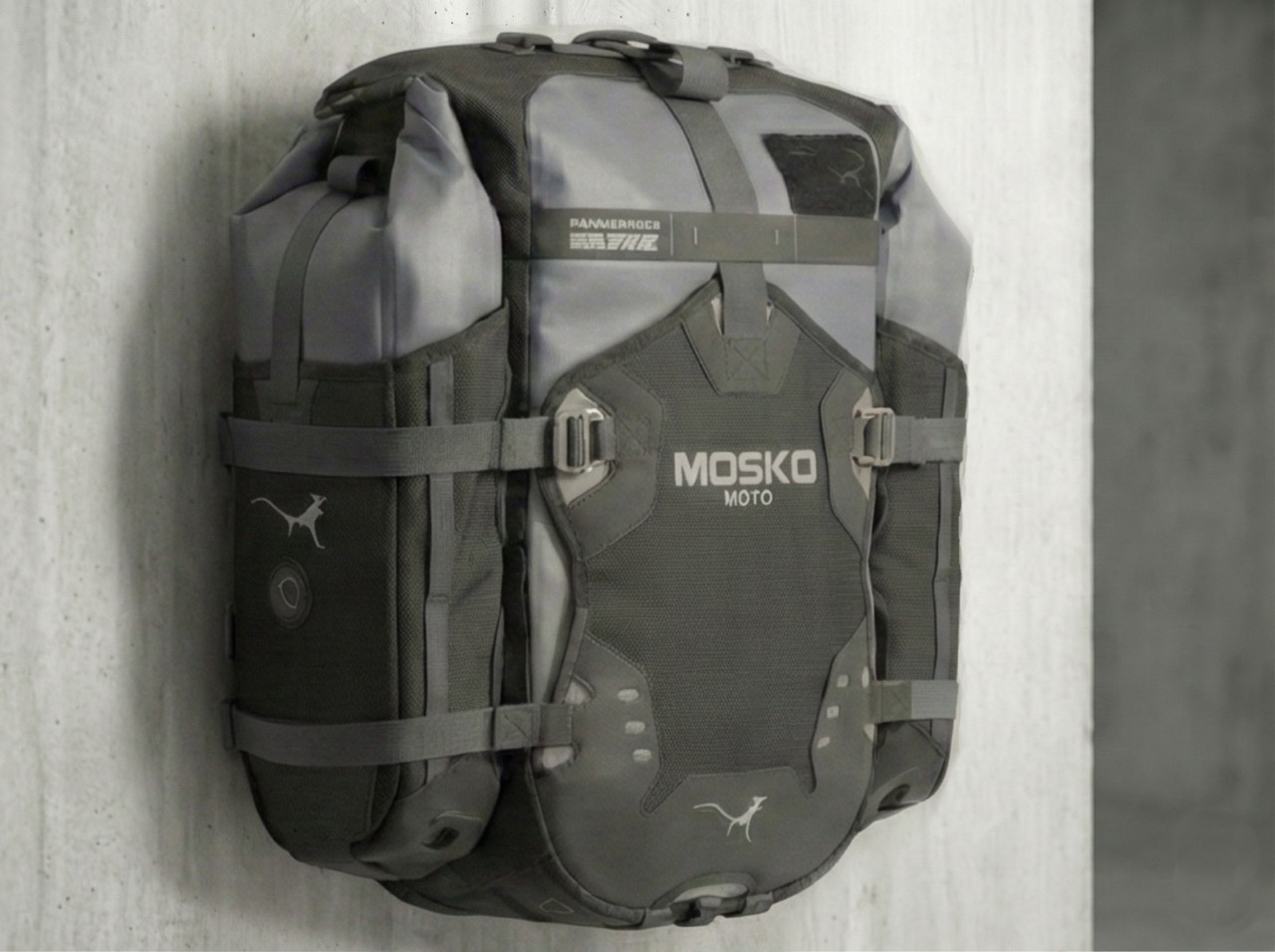

Hang & Enjoy
Slide your Mosko Moto pannier onto the dock just like you would on your bike. The fit should be precise and secure.
Your garage chaos is now solved.
